True RMS AC/DC milliamp clamp multimeter for high-accuracy low current measurement
Ideal for leakage, differential and standby current measurements
Measures 4–20 mA process signals without interrupting the loop
Multi-function unit: AC/DC current, voltage up to 600 V, resistance and continuity
Compact design with 23 mm jaw opening, backlit display and HOLD / MIN-MAX / ZERO functions

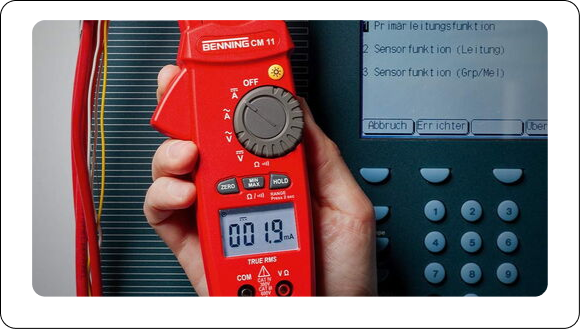

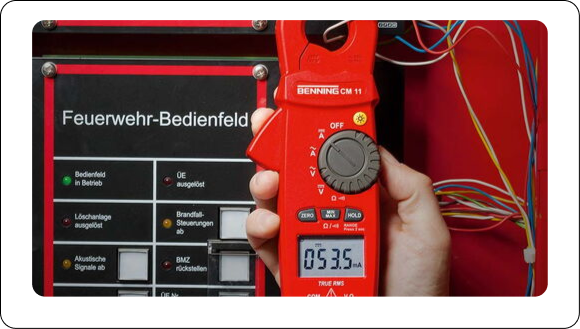

BENNING CM 11 is a compact True RMS AC/DC milliamp clamp multimeter designed for precise low-current measurement without breaking the circuit or loop. It is ideal for troubleshooting electrical systems, control panels, 4–20 mA process loops, appliances and automotive electrical applications.
| Model: | BENNING CM 11 |
|---|---|
| Display: | 4 digit LCD, illuminated |
| AC Current (True RMS): | 300.0 mA / 3.000 A / 20.00 A |
| AC Resolution / Accuracy: | 0.1 mA / ±1% of reading + 5 digits |
| DC Current: | 300.0 mA / 3.000 A / 10.00 A |
| DC Resolution / Accuracy: | 0.1 mA / ±1% of reading + 10 digits |
| Voltage (AC/DC): | 60.00 V / 600.0 V (True RMS for AC) |
| Voltage Resolution / Accuracy: | 0.01 V / ±1% of reading + 2 digits |
| Resistance Range: | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ |
| Continuity Test: | Up to 100 Ω (audible & visual) |
| Memory: | HOLD, MIN/MAX, ZERO (null adjust) |
| Clamp Jaw Opening: | 23 mm |
| Auto Power Off: | 15 minutes (deactivatable) |
| Measurement Category: | CAT IV 300 V / CAT III 600 V |
| Dimensions (L×W×H): | 206 × 76 × 33 mm |

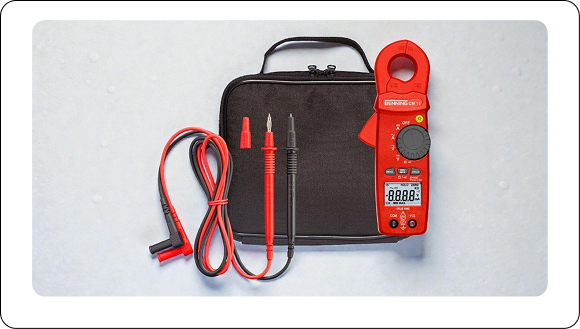

| Accessories: | Batteries, test lead set, protective case |
| Item Number: | 044067 |
