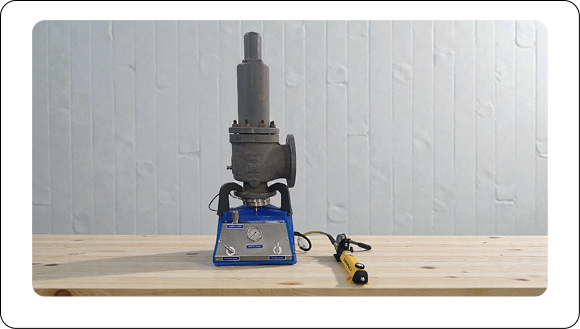

Introducing the Portable Safety Valve Test Bench – Hydraulic Clamping Model by Techmark Engineering Solutions. This compact and rugged testing unit is specifically designed for accurate testing and calibration of safety and pressure relief valves in field as well as workshop conditions.

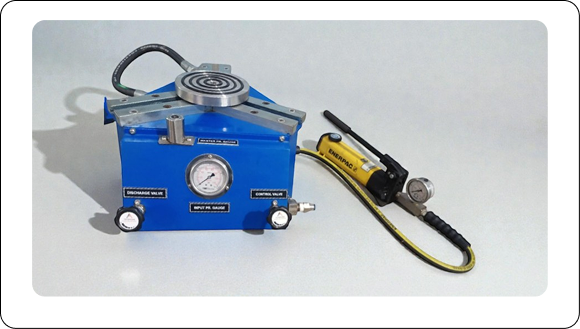

The bench features an innovative triangle structure with a 3-jaw hydraulic clamping mechanism, allowing quick and stable clamping of valves ranging from ½” to 4”. Powered by a manual hydraulic hand pump capable of operating up to 5 tons of clamping force, ensuring maximum safety and reliability during testing.

Specifications:

• Valve Compatibility: Suitable for both screwed and flanged valves.
• Size Range: Tests valves ranging from ½” to 4”.
• Pressure Range: Capable of testing up to 200 bar.

Standard Accessories:

• Adaptors for screwed valve sizes (½” to 2” BSP Male type).
• O-ring/gasket sets (1 Set).
• High Pressure Hose.
• Leak Test Device.

Optional Add-Ons:

• Valve Analyzer Software: Comes with a Digital Master Indicator for enhanced data analysis.

Manufactured by Techmark Engineering Solutions, this Portable Safety Valve Test Bench – Hydraulic Clamping model is ideal for on-site testing, ensuring safety and efficiency with every use.
