Smart Range of Pressure Comparator with Precise Regulator - Pneumatic

Salient Features

Automatic Pressure Generation with Precise Regulator
Ultra-Fine Pressure Control at Any Point
Guaranteed Zero Leakage
Immediate Stability: 2–3 Seconds
Fully Complied with NABL Calibration Norms

Description

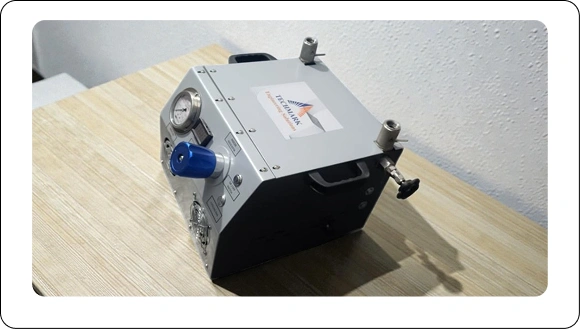

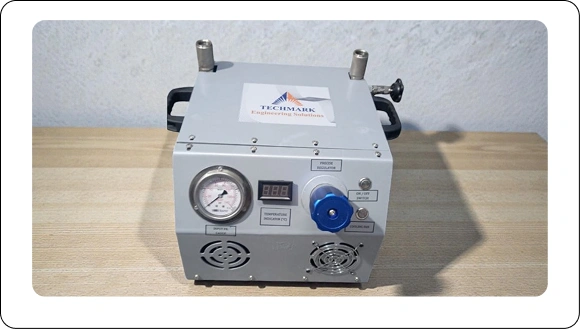

Techmark Engineering Solutions introduces the Smart Range of Pressure Comparator with Precise Regulator (SRPC-PR Series – Pneumatic), engineered for high-accuracy pressure calibration with superior control. This advanced automatic pressure comparator combines fast pressure generation with a builtin precise regulator, enabling ultra-fine pressure adjustment at any point. The system delivers rapid pressure build-up across the full range with immediate stability within 2–3 seconds, ensuring smooth, repeatable, and NABL-compliant calibration performance.

Technical Specifications

Pressure Ranges:SRPC-PR-60: 0 to 60 bar, SRPC-PR-100: 0 to 100 bar, SRPC-PR-160: 0 to 160 bar
Media:Air
Pressure Generation:Automatic for all models
Power Supply:230 V AC
Safety:Auto shut-off at full range for all models

Standard Inclusions

Optional Add‑Ons

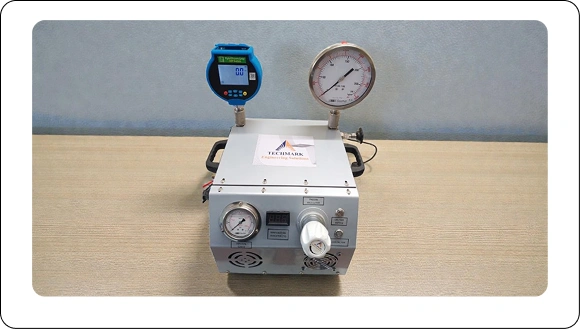

Digital Master Pressure Gauge

Accuracy options: 0.1% F.S · 0.05% F.S · 0.025% F.S
